Animated Facial Textures in Maya and Unity - Full Document

Click 'Read More' below to see the full document.

Download the pdf document here:
Direct link

If you have any questions or comments, feel free to leave a message!

Building and Animating Texture-based
Facial Features for Maya and Unity

Jacob Hemphill
August 2013




To build a texture-based facial feature system that can be viewed and animated in Maya and be exported to the Unity engine.
In this document, I outline a new method for texture-based animation in Unity.  The process starts in Maya, where the user builds a system to handle texture-based animation through Maya expressions.  That same system controls joints which are exported for Unity.  I wrote a C# script to handle the information coming in on the joints, and display an identical animation in Unity.

In Maya, it is not difficult to create a character with animatable texture-based facial features, if that model is only handled in Maya.  The problem comes when exporting that character to a game engine, as the engine may not support the same features Maya offers.

Several common methods used in Maya cannot be used in Unity.  An easy method is through texture swapping with a sequence of images; however, this is a large waste of resources in a game engine.  We could also animate the UV maps in Maya, but Unity does not support that form of animation, since it only really takes joint animation, and not channel or vertex animation.  A method we can use is through basic texture tiling and offset.  Rather than animate the UV map above the texture, this method will offset the texture under the UV map to change the image.

This document is presented in the style of a tutorial that breaks down each step; you can read with the pictures or follow along with your own project.  This writeup assumes an understanding of Maya modeling and texturing tools; an image editing software, such as Photoshop; a simple understanding of scripting (for editing and adaptation); and a very basic understanding of Unity.




To begin, model or find the object that you wish to create the face.  While this tutorial focuses around using it for facial features, this method can be used to do any sort of texture-based animation.  For this example, I will be using this low-poly model of Nassa, the Gnome:

Next step is to select the faces where you want the facial textures to exist.  You can use as many or as few planes as you want, if you wanted to separate the eyes and brows, for example.  Duplicate out these faces, and bring them slightly in front of the main geometry.  By using the existing geometry (or cutting it from existing geo), it will be easier to construct something that is flush with the model.

For this low poly model, I added in some dummy planes to get an idea of where her features would be.
Next, go to the UV window and arrage your UVs to fill the space efficiently.  (You can duplicate your mirrored planes to share the same UV space.)  I projected from the front camera, then relaxed select UVs, since I want the frontal view to match the drawings for the face.  Choose your aspect ratio and save your UVs out to file.  For this model, 64x64 or 128x128 will be plenty.

Create in your facial features in Photoshop.  I started with test features, and tweaked them to fit where I wanted them to go.  The dummy planes from before helped me line up the facial features in Maya.  You will also want to set up the alpha for your features in Photoshop.

Put your facial features on your object by creating a new material for each of the planes.  Put the material file into your color and transparency.

Use the Hypershade to pipe in the same file and place2dTexture nodes for both diffuse and transparency.  It will make section 4 simpler if they share the same nodes.  I also applied the character's materials during this step.
You might have a flat color behind your facial features, even though we set up alpha in Photoshop.  If that’s the case, make sure you also put your Diffuse texture into the Transparency channel.  A TIFF file works great for 32-bit images, supporting alpha.

If you still have transparency issues, there are a couple of things to check.  Using High Quality viewport or Viewport 2.0 (Maya 2014) may solve this.  Also, if you are sharing transparent textures with your base mesh texture, it may cause isses.  Separate faces using transparency into a different material.  You may need to do this in Unity as well.

Reference on alpha maps for Unity:



Export your object as an FBX.  When we import the file, Unity will set up some of the folders for us.

Import object into Unity by dragging your FBX file from Windows Explorer into your Unity project.  Unity will automatically create a Materials folder with your object's texture information, but FBX files don’t carry the textures themselves.

Drag your character from the Project Assets into the Unity viewport.  This will create an object in the scene for us to test on.

Drag your texture files into your folder structure, then assign them to the materials by selecting the material, then dragging the texture there.  For the sake of simplicity, we will just keep the textures in the materials folder.

Now link your materials with the correct textures.  For the sake of this example, I will just use diffuse shaders.  My main shader is the default diffuse, and all of my shaders with alpha will get the Transparent/Diffuse shader.

But what about your other eye?  When Unity imports an FBX, it creates materials based on the texture names, but items with shared textures don't get individual materials.  In this case, it's okay that there is only one material, as it will be instanced in each of the eye objects.  If you do need more materials, you can just create new nodes in your Project browser.


I also made a separate material for my meshes using transparency, just like we did in Maya.

Now's a good time to rename your textures as well, as Unity only takes the diffuse filename for the texture.  Press F2 in Windows to rename a material.

Reference on transparency shaders for Unity:    http://docs.unity3d.com/Documentation/Components/shader-TransparentFamily.html

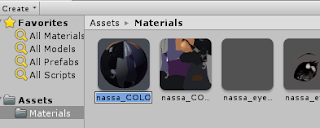

All of these files will now show up in your Unity project folder.  Every time you update your textures or export your FBX model, make sure you copy the new files into your Unity project folder on your computer, and they will automatically update in Unity.
If your model looks fine and transparency is working, it's time to go back to Maya!


Now that it is working with one set of facial features, we need to set up the rest of the frames.
First, decide on the number of permutations of each feature.  The nice thing about this system is that you'll be able to add more later if you need to do so.  Extend your texture size to accommodate that number of frames, but make sure you keep the dimensions to a power of two.  I went ahead and made colored boxes so I could see the even separation of each square, and I overlayed the UVs over them.

In this example, I have 8 eyes and 5 mouths.  For both of these numbers, I’ll use 8 boxes.  I'm leaving the colored boxes for now, and later, I'll fill in the background with the correct color.
With the mouths, I had several unused boxes.  That's okay!
Unity CAN handle non-square textures and non-power-of-two textures.  We're taking advantage of the non-square textures, though we are still using square frames.   So, if I had more than 9 frames, I’d use 16 squares.   Despite having fewer frames, you still want to keep powers-of-two for compression purposes.
Texture Sizes; Ideally texture sizes should be powers of two on the sides. These sizes are as follows: 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048 etc. pixels. The textures do not have to be square, i.e. width can be different from height. Note that each platform may impose maximum texture sizes.
Now, replace your texture in Maya with the new multi-frame texture.

You'll notice that the texture is automatically squashed into a square shape.  Not to worry!  We just need to adjust the tiling in Maya.

The ratio needed will change based on how many frames you have.  Use the formula:
texture_ratio = 1/frames
1 = 1
2 = .5
4 = .25
8 = .125
16 = .0625 (Maya may not correctly display this due to number rounding, but Unity will)
If you did it properly, you should see the original face alone on the character.  However, now you can change it by increasing the offset in multiples of your texture ratio.

Before we leave this section, name your place2dTexture nodes to something unique and easy to read, as we'll need to access these in the next section.

And also, you can now bring your new textures back into Unity and test the offset by editing the material, just as you did in Maya.  Later on, this will be controlled by a script.


Now here is the clever part.  We need functionality to offset textures in both Maya and Unity, but Unity only really likes joint animation and throws out most of the other Maya channels.  Well, if it likes joint animation, that's what we'll be using.  We need to set up some drivers in Maya first.
To begin, set up any sort of head joint system you want to use, as we can connect our driver joints to that same system.

I used additional joints for extra controls.  At the very least, you want a neck and a head joint.
Set up your dummy joints for the eye and mouth.  We'll be scaling these joints by single digits to correspond with the indexes of each of the faces.  Unity accepts joint scaling, and that's the most reliable way to transfer values, as you almost never want to scale joints anyways.  Joints can take any scale from 0 to infinity, so given that they aren’t weighted to anything, they shouldn’t affect anything.
The location of the joints themselves doesn't really matter; I put mine in the eye and mouth spots for organization.

Create a controller for your expressions.  This will have the attributes that will drive the offset in Maya and scale the joints for Unity.  Make a Nurbs circle, select it, then navigate to Modify > Add Attribute...

Name your attributes, set the Data Type to int, and if you like, set your Minimum, Maximum, and Default numbers.  Start your numbering at 0.

If you mess something up, you can adjust your attributes in Modify > Edit Attribute...
Now, onto the expressions; when the attribute is adjusted, we want it to:
1.       Change the place2dTexture offset (at the same ratio as in the repeatUV box)
2.       Scale the associated joint by the same value
Load the expression editor at Window > Animation Editors > Expression Editor.  Create a new expression with a unique name.  In the Expression box, enter the following information, replacing the 'user' values for your own names:
//Calculate the offset and multiply it by the given value;  set the joint scale to the given value
userPlane_place2dTexture.offsetU = userControlCurve.userAttribute * userPlane_place2dTexture.repeatU
scaleX = userControlCurve.userAttribute
What this will do is set the place2dTexture offset value to your attribute, multiplied by your ratio (which happens to be shared with the repeatU), and set your joint's scaleX to be the same as your attribute.
If you are using the same place2dTexture for your diffuse and texture nodes, it will handle the offset for you.  You can hook this up the hypershade.  If you are using different place2dTexture, you’ll need an extra expression to account for that as well.

Filter by expression name to see existing expressions.

Make a separate expression for each object, for organization purposes.
If that worked, you should be able to change your attribute, and immediately see your textures change; and if you click on the joints, you can see the values have changed there as well.

You are also able to set keys on the controller object; just make sure your curves are stepped, so it doesn't blend between multiple frames when transitioning.
With the use of expressions, you can technically use anything to control these values, including separate curve controllers or sliders.  This will serve our purposes for demonstration; this setup will let us easily animate it in Maya and see the results, as well as drive the joints for it to be animated in Unity.


Now it's time for the Unity portion.
Create an animation of the head movement, and make sure to use your fancy new controls.  Bake the keys onto your joints by selecting all of the joints and navigating to Edit > Keys > Bake Simulation.  This is important to bake the expressions we made earlier to the joints.

Select your joints and Export Selection as an FBX, using the naming convention: model_name@animation_name.FBX.  Make sure animation is checked.
Drag your new animation FBX into Unity.  You can check out the animation by opening the group, and clicking on your animation; the model is already set up in the preview window, thanks to the @-notation we used.
Now we need to apply the animation to the avatar, to be able to see it when we hit the play button.  Create a new Animation Controller by right-clicking the Project folder and navigating to Create > Animation Controller.

Double click your Animation Controller to open it, then, drag in your animation.  Right click 'Any State' and make a transition leading to your animation.  This will automatically play the animation when the scene starts.

Return to your scene using the tab at the top of the viewport.

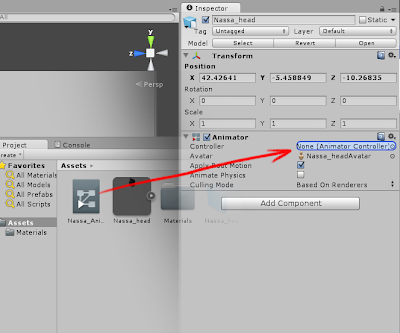

Click on your avatar, then drag the Animation Controller to the inspector.

The head is moving, but the facial features aren't working!  That's what we'll be addressing next.


We need to write a script change the facial features, and the joints we made in Maya will drive it.  Create a new C# script; right-click, Create > C# Script.  Name it AnimatedTextureOffset

Open your script and copy in the following text:
using UnityEngine;
using System.Collections;

public class AnimatedTextureOffset : MonoBehaviour {
       public string jointName = "ENTER_JOINT_NAME";
       public int frameRate = 30;
       private GameObject jointController;
       private int jointScale;
       private float offsetRatio = 1;
       private float currentOffset = 0;
       private float previousOffset = 0;
       private float timer = 0;

       void Start () { enabled = FindAnimatedTexture(); }
       void Update () { SetAnimatedTextureOffset(); }
       bool FindAnimatedTexture(){
              // Make sure a renderer exists on this object
                     print ("Error in AnimatedTextureOffset: Could not find a renderer on this object.");
                     return false;
              // Determine offset ratio by querying the main texture
              Texture myTexture;
              myTexture = renderer.material.mainTexture;
              offsetRatio = (float)myTexture.height/(float)myTexture.width;
              // Set the texture scale for the element based on the found offset ratio
              Vector2 size = new Vector2 (offsetRatio, 1);
              renderer.material.SetTextureScale  ("_MainTex", size);
              // Find the joint that will be controlling the object,
              // or alert the user if it doesn't exist
              if(!(jointController = GameObject.Find(jointName))){
                     print ("Error in AnimatedTextureOffset: Could not find" + jointName);
                     return false;
              return true;
       void SetAnimatedTextureOffset(){
              // This timer limits the script to only update a limited amount of times per
              // second, so it doesn't catch interim blended frames between two keys
              if(timer <= 0){
                     // Find the controller object as specified (scaleX) and
                     // multiply by the joint scale
                     jointScale = (int) jointController.transform.localScale.x;
                     currentOffset = jointScale*offsetRatio;
                     // If the offset has changed, update the offset
                     if(currentOffset != previousOffset){
                           Vector2 offset = new Vector2 (currentOffset, 0);
                           renderer.material.SetTextureOffset ("_MainTex", offset);
                           previousOffset = currentOffset;
                     timer = (1/(float)frameRate);
              else {
                     timer -= Time.deltaTime;

When this script is applied to an object in the scene, it will handle the animation switching.  It checks the texture, and automatically does the math for us to find the ratio (if you properly set up the texture in a single row with individual square frames).  It will then adjust the offset in realtime, based on the scaleX value of the object inputted into the 'Joint Name' variable box.

To get it working, drag that script onto each of your objects to be animated.

And change the value of the 'Joint Name' box to the name of the joint that will be controlling the animation.  Make sure this name is unique!
If you used an FPS other than 30, you can change it here as well.  This is important as it stops Unity from updating the animation while it's blending between two keys; even though we baked animation while using stepped curves, Unity still tries to fill curves in between keys.  See the Afterword for more information about this.

Now press the play button at the top of the viewport.  You should see the character's face fully animated!



This method of work can be easily expanded and altered.  The most complex part of the project was writing the script.  Setting everything up in Maya and Unity is actually fairly simple, but I wanted to break it down in common terms so everything was clear.  This is especially useful, considering the offset/tiling material functionality in Maya being near identical to the functionality in Unity.  And really, the expressions, joint-drivers, and the script are the interesting bit.

Contrary to what I say in the breakdown, it should still work with non-power-of-two meshes, as long as the single-row-square-columns convention is kept.  I tried to make the script as robust as possible, with as little input needed from the user as possible, and this was part of my solution.  It could easily be adapted to function with tiles or non-square frames, but that would require additional input from the user.  Check the additional resources for links on how this could be built.

The biggest flaw with the method outlined here, is the way the offset updates; because Unity automatically fills the gaps between keys with splines, going between two keys will have an infinite number of interim keys.  Going from 1 to 2 is, of course, not a big problem, because the numbers will round to 1 or 2, albeit they round not quite where the keys lie.  But if you go from 1 to 3, at some point, the keys will come awfully close to 2.  If I let it update constantly, the script will blend every frame in between the two keys on its way to the opposite key.  Going from 0 to 7 really shows this, because it blends through every single key.

My solution to this issue was to limit the updates to a framerate set by the user.  This works out, and even if it gets out of sync, the problems are still minimal.  That's why it allows the user to change the FPS as well.  Because I don't query the animation played, I can't get that information from the animation, nor do I want to; by prompting the user, they have the option of entering any framerate other than the actual framerate, such as 15 or 10, instead of 30, which could potentially further fix any sort of skipping problems should they arise.  If you were to set the framerate to a very high number, you can see how it updates faster than it should, and the reasoning behind this variable.

Another (non-working) solution I had tried was to set a threshold at which the script would update (essentially hitting a whole number in the scaleX), but this didn't work out, since even differences between keys still occasionally landed whole numbers.  Of course, you could animate the offset all in Unity, but the point of the project was to do it in Maya and Unity together.

Happy animating!


Animated tiling textures.  I used these concepts as a jumping-off point.

General Unity shader and material reference

Steps to get animation working in Unity

Remember, when it comes to using a new scripting language or engine, Google is your friend…

…and to our advantage, Unity is very well documented.
